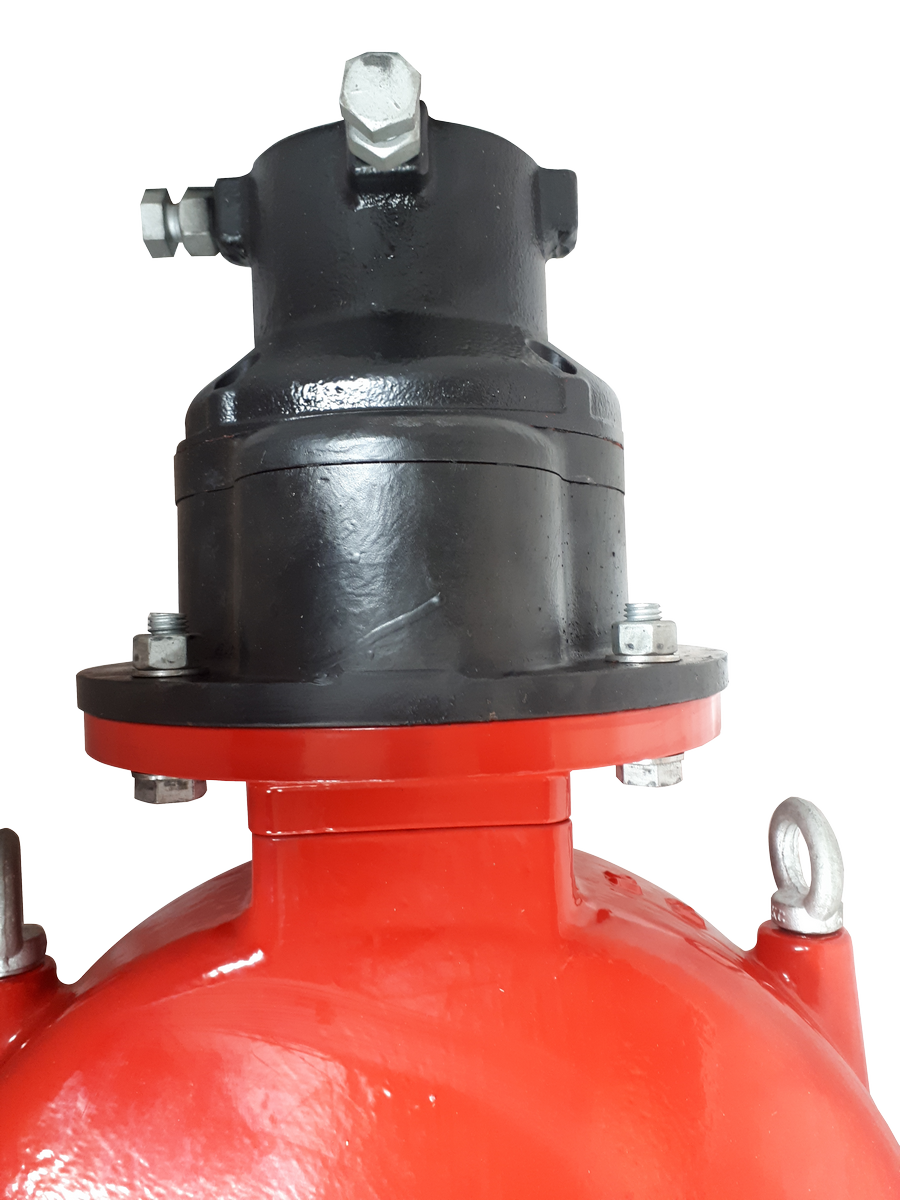

Manually operated wedge gate valve with a non-rising stem. The design of the gate valve enables an indicator (veritcal or horizontal) to be fitted to show the position of the wedge of the gate valve. The vertical indicator fot the gate valve model F0601-IP is equipped with an internal gear that varies the torque and force required to close or open the gate valve. The gate valve indciator allows an optional kit to be fitted to monitor the status of the gate valve position (fully open or fully closed). Used as a basic fitting in fire protection installations complying with NFPA/FM guidelines. Installed in pumping stations, at systems branches, outside buildings in the ground, as a shut-off gate valve at external hydrants.

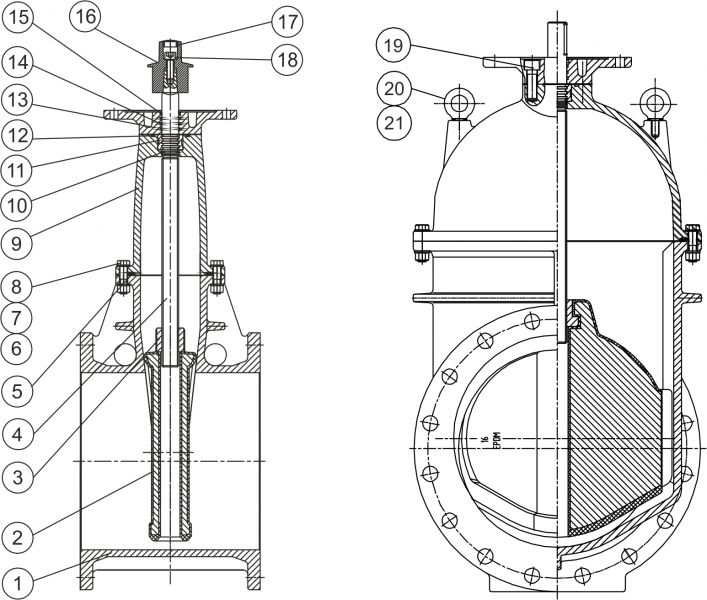

The available versions and the scope of certification should be consulted with the technical department. Design and materials are subject to change without notice. Flanged wedge gate valve under indicator model F1211

Installed in pumping stations, on branch lines, outside bulidings in the grund, as a gate valve at external hydrants.
